The Art Of Growing Plants Without Soil – Aeroponics, And Hydroponic
Historically, humans have grown crops in soil and they could not think of growing them in the air or a liquid but the advent of modern science and technology has made it possible
Jenna Walter
July 12, 2021
The post-apocalyptic scenario depicted in Wall-E shows that the planet earth had turned into a barren wasteland, although the movie shows a seedling growing out of a shoe, a possible solution would have been the use of aeroponics and hydroponics. These processes of growing plants without soil as a medium are mind-boggling for many.
Historically, humans have grown crops in soil and they could not think of growing them in the air or a liquid but the advent of modern science and technology has made it possible.
Hydroponics:
Hydroponics requires an aqueous solvent to grow a plant. The hydroponic system will control the environmental conditions of the plant. These conditions include the temperature and the pH balance. Simultaneously it also maximizes plants’ exposure to nutrients and water.
Hydroponics has a simple philosophy that is to provide the exact things the plant needs to grow. The administration of nutrient solutions is tailored to the needs of the particular plant being grown. The system will let the researchers control the exact amount of sunlight needed and for how long it is needed. These conditions are customized and controlled to accelerate the growth of the plant. The controlling of these factors helps reduce the chances of diseases or stunted plant growth.
On the contrary, plants that are grown in conventional conditions are more susceptible to growth issues. The soil of these plants can have fungus which can spread to the plants. Conventional plantations are also vulnerable to wildlife. Locusts attacks are also common on crops. They are known to consume whole fields in a day.
The hydroponics system can end the uncertainty that comes with growing plants outdoors. The soil only acts as a barrier for the seed while a hydroponic system allows a plant to grow vigorously.
If you are into trying out hydroponics you can buy a hydroponic garden kit. It will help you grow your favorite plants within your home.
Aeroponics:
Aeroponic systems will use the nutrient-laden mist to provide the plant necessary nourishment. It is based on the above-mentioned hydroponics systems in which the roots are submerged in a soilless growing medium.
The aeroponic eliminates the growing medium, the roots are left mid-air hanging from the pieces of foam stuffed into tiny pots. The roots are sprayed with nutrient-rich mist from time to time using specially designed devices that let you control the amount of mist, its pressure, and direction.
The seeds are planted in the foam stuffed tiny pots. On one side of the seed is light and on the other side is the mist. The foam helps to hold the plant as it grows over time.
The Use Of This Technology In Future
In the future use of these technologies will only increase. Climate change and global warming are making it difficult to grow crops using conventional methods. The earth is becoming barren due to aggressive farming practices.
The only solution left would be to use hydroponics and aeroponics. They offer more control over the growth of the plant. They can help increase crop production and they are safer because they do not use pesticides or insecticides.
“We Are Just At The Beginning of Understanding Plants In These Environments”
OnePointOne (OPO) recently announced its partnership with Sakata Seeds to develop seeds for vertical farms.
OnePointOne Sees Many Opportunities In Seed Breeding Partnerships
OnePointOne (OPO) recently announced its partnership with Sakata Seeds to develop seeds for vertical farms. When being asked about the initial reason for the partnership, Sam Bertram, CEO and Co-Founder of OPO says, “Sakata is a world leader in hybrid and open-pollinated seeds for leafy greens and vegetables, with decades of research, IP on varieties, and access to new crops in development from around the world”.
Sam explains that putting these seeds through OPO’s vertical plane aeroponic system will push the quality and productivity limits of some of the highest quality seeds on earth. “OPO’s high-resolution and hyperspectral imaging capabilities will arm our plant scientists with new data sets to further push the boundaries of what’s possible. Sakata’s executive team see tremendous value in this space and are quickly becoming leaders in the CEA seed space,” Sam affirms.
OPO’s ability to reactivate varieties in Sakata’s seed bank is of great strategic interest to both parties. In the end, a business deal depends on great people doing great work. OPO has found working with Sakata to be positive and rewarding. The tremendous synergies in strategic outcomes and company culture have made this deal powerful.
Samuel Bertram
Sakata partnership
“Our intent behind this deal is to screen Sakata’s immense seed bank to find the most nutritious, best tasting, and most productive varieties. The most important outcome is to uncover these high-performance seeds and ensure that they are distributed to the entire vertical farming marketplace,” Sam states.
This partnership will ensure that high-quality, biodiverse products are available to more people, sooner. Some varieties like Savannah grow in limited locales outside, but exceptionally well inside; creating new opportunities for “lost varieties”. According to Sam, it will drive differentiation between outdoor and indoor products in the market, making it simpler for consumers to identify indoor-grown products. “Now that we have eliminated all pesticides and contaminants, many old and new cultivars become viable for the market. In the end, the consumer will win.”
Portfolio expansion
“As we have barely scratched the surface,” Sam says, “this is a new paradigm of cultivation that just achieved its Kittyhawk flight.” He continues, “we are just at the beginning of understanding plants in these environments.” Imagine the breadth of work to be done when surveying the 30,000 varieties of edible plants, 29,800 of which are not generally found on the market. The opportunity is vast, and the future is bright. “OnePointOne is exceptionally well suited to support the needs of seed research, climate modeling and novel seed breeding for data collection or production at scale.”
According to Sam, plants are the basis of human health. OPO’s mission is to unleash the power of plants on human health. Moreover, consumer interest in a variety of tastes and flavors is no surprise, nor should it come at the cost of global sustainability. “Right now, consumers are fed the illusion of choice, but are beholden to a supply chain that makes the choice for them.” He continues, “providing new environments for the development and production of sustainable produce should be seen as an integral piece of the food supply chain.”
Difficulties
Seeds bred for outdoor settings are bred for climate and supply-chain hardiness. Sam says, “When you control the environment and eliminate the supply chain, your breeding objectives change. Therefore, the seedbanks we are drawing from have not been built for vertical farms.” According to him, breeding indoors is a far simpler and faster exercise than breeding outdoors, especially if the process and data analytics are automated. As Sam likes to put it, “Some plants just grow exceptionally better in controlled conditions.” They open new opportunities to change the flavor or biofortify nutrients just by changing the precision environment it is grown in.
As Sam explains, there’s currently no difference between vertical farming and greenhouse seeds. “In the future, there will be. Numerous early-stage organizations are dedicated to developing seeds for indoor vertical farms. Since we have tighter control over temperature, humidity, and illumination than greenhouses, we can work with the most delicate seeds and provide the precise environment they need to thrive.”
Demand
Sam sees demand coming from consumers that have been disillusioned with the false narrative of “Organic”. Consumers that know Organic cultivation practices still use pesticides and result in products laden with heavy metals. Next to that, demand comes from consumers that are willing to pay a premium for the guarantee of safety and consistent quality.
“I hope to see a greater number of people having access to higher quality, safer, pesticide-free, tasty fruits and vegetables with a much greater choice and control. This is only the beginning of the proliferation of vertical farming,” Sam notes.
Potential partnerships
“Rijk Zwaan is another great seed company,” Sam notes, “which we hope to work with to better understand how their seed libraries and crop IP could support indoor farmers with new products.” Seed breeding is a decade-long endeavor in almost every case. Being able to reproduce and vary environmental factors on demand means a dramatically faster breeding program is possible.
Currently, OPO is developing a production system that doubles as a high-throughput phenotyping system. This volume and quality of (especially imagery) data will allow AI to discover things humans cannot possibly discover. This is a clear, key differentiator.
For more information:
OnePointOne
info@onepointone.com
www.onepointone.com
24 June 2021
Author: Rebekka Boekhout
© VerticalFarmDaily.com
USA: INDIANA - Delaware County Moves Ahead With Economic Incentives For Vertical Farming Company
Living Greens Farm, an indoor produce farmer based out of Minnesota, is looking to turn the space into its next produce facility. The company uses an aeroponics process, also referred to as vertical farming, to produce greens for sale in grocery stores
Muncie Star Press
MUNCIE, Ind. — Delaware County is moving forward with economic incentives for a vertical farming company looking to buy the Industria Centre shell building along Fuson Road.
The shell building, measuring 200,000 square feet, was built in 2014 by Garmong Construction. The nearly $8 million county-funded shell building had been unable to find a tenant in seven years.
This building is officially owned by Garmong, a Terre Haute-based company that's been a frequent partner with the county on shell buildings in the past.
►PREVIOUS: Indoor farming company could purchase Delaware County Shell building
The building is funded by the county and built on county-owned land.
Living Greens Farm, an indoor produce farmer based out of Minnesota, is looking to turn the space into its next produce facility. The company uses an aeroponics process, also referred to as vertical farming, to produce greens for sale in grocery stores.
What Is Aeroponics?
Aeroponics is an advanced variation of hydroponics where plants are suspended in the air; their roots dangle down and are periodically misted with water from a timed sprinkler system connected to the main nutrient reservoir
How Aeroponics Works,
Types, And Pros, And Cons
June 14, 2021
Aeroponics is an advanced variation of hydroponics where plants are suspended in the air; their roots dangle down and are periodically misted with water from a timed sprinkler system connected to the main nutrient reservoir. This soilless growing method is best for plants that need more oxygenation since aeroponic roots aren’t hampered by dense soil or thick growing mediums. Depending on the plant and specific type of aeroponics system, the grower typically uses little to no growing media at all.
In aeroponics, a specially designed pump and spray system is submerged into the nutrient-water solution and timed to release short mists of water to the plants’ roots throughout the day. Because roots will have more access to oxygen and humidity in an aeroponics system, they often grow two to three times larger and yield far bigger numbers than traditional farming methods. Generally, it also uses less water over time since excess water not absorbed by the roots is drained back into the nutrient tank, and the mist allows for higher concentrations of nutrients with less liquid.
Most of the plants that work with hydroponics will thrive in an aeroponics system, from leafy greens and herbs to tomatoes, cucumbers, and strawberries, but with additional perks. Because of the exposed root qualities of aeroponics systems, root vegetables like potatoes that would otherwise be ill-suited for hydroponics systems will flourish as they’ll have more room to grow and be easier to harvest.
Neznam / Getty Images
Aeroponics in Space
NASA began experimenting with aeroponics as early as 1997, planting adzuki beans and seedlings aboard the Mir space station in zero gravity and comparing them to controlled aeroponic gardens on Earth treated with the same nutrients. Amazingly, the zero gravity plants grew more than the plants on Earth. Aeroponics can not only provide long-mission deep-space NASA crews with fresh food, but it also has the potential to provide them with fresh water and oxygen.
How Does Aeroponics Work?
The seeds are planted somewhere they’ll stay in place, such as pieces of foam, pipes, or foam rings, which are then wedged into small pots or a perforated panel with a tank full of nutrient solution below. The panel elevates the plants so they’ll be exposed to the natural (or artificial) light and circulating air, providing light on the top and nutrient mist on the bottom, and an enclosure around the roots helps keep the moisture in. A timed pump rests inside the tank or reservoir, pumping solution up and through spray nozzles that mist the roots, with excess liquid draining straight down through an outflow chamber back into the reservoir. At the next timed interval, the entire cycle starts again.
Neznam / Getty Images
Nutrients for aeroponics systems, like hydroponics, come packaged in both dry and liquid forms. Depending on the plant and growth stage, primary nutrients may include nitrogen, phosphorus, and potassium, while secondary nutrients can range from calcium and magnesium to sulfur. It is also important to consider micro-nutrients, such as iron, zinc, molybdenum, manganese, boron, copper, cobalt, and chlorine.
In aeroponics systems where the nutrient solution is continuously recycled, the pH measurements need to be taken regularly to ensure that enough nutrients are getting absorbed into the plants.
Natural Aeroponics
Aeroponics occurs in nature, specifically in more humid and wet regions like the tropical islands of Hawaii. Near waterfalls, for example, plants will grow vertically on the rocks with their roots openly hanging in the air, the spray from the waterfall moistening the roots under the right conditions.
Types of Aeroponics
There are two types of commonly used aeroponics: low pressure and high pressure. Low pressure is the most used by home growers since it is low cost, easy to set up, and its components are easier to find. However, this type of aeroponics often uses a plastic spray nozzle and a typical fountain pump to deliver nutrients, so the droplet sizes are not exact and can sometimes waste more water.
High-pressure aeroponics, on the other hand, distributes nutrients through a highly pressurized nozzle that can deliver smaller water droplets to create more oxygen in the root zone than low-pressure techniques. It is more efficient, but much more costly to set up, so it tends to be reserved for commercial production rather than hobbyists.
High-pressure systems typically mist for 15 seconds every 3 to 5 minutes, while low-pressure systems may spray for 5 minutes straight every 12 minutes. Experienced growers will adjust the spraying interval according to the time of day, watering more frequently at night when the plants are less focused on photosynthesis and more focused on taking up nutrients. With both types, the reservoir solution is kept at a temperature range between 60 F and 70 F in order to maximize the absorption rate of the plant. If the water becomes too hot, it is more susceptible to algae and bacteria growth, but if it gets too cold, the plants may start to shut down and not take as many nutrients as they would at a more optimal temperature.
Aeroponics at Home
While some growers choose to use horizontal aeroponic systems similar to traditional soil farming, vertical systems can save more space. These vertical systems come in all shapes and sizes, even small enough to be used on a back porch, balcony, or even inside an apartment with the appropriate lighting setup. In these smaller systems, misting devices are placed on top, allowing gravity to evenly distribute the nutrient solution as it spreads downward.
Neznam / Getty Images
Aeroponics kits are available to make the setup process easier for beginners, but it is also possible to design and build your own system at home, similar to hydroponics, with tools found at most local gardening stores. Due to the complicated and expensive nature of high-pressure aeroponics, it is always prudent for beginners to start off with a low-pressure system before working their way up to more technical operations.
Fun Fact
The first recorded use of aeroponics happened in 1922 when B.T.P. Barker developed a primitive air plant-growing system and used it to research plant root structure in a laboratory setting. By 1940, researchers were frequently using aeroponics in plant root studies, as the dangling roots and lack of soil made it much easier to observe changes.
Pros and Cons
One of the most significant advantages of aeroponics systems is the fast and high crop yield and the fact that it uses the least amount of water over time compared to hydroponics and aquaponics. Roots are exposed to more oxygen, helping them absorb more nutrients and grow faster, healthier, and larger. Also, the lack of soil and growing medium means that there are fewer threats of root zone diseases.
On the flip side, aeroponic system chambers are constantly being sprayed with mist, keeping them wet and prone to bacteria and fungi; this can be remedied by cleaning and sterilizing misters and chambers regularly.
Affordability Factor
Studies show that the cost of growing a tuber (such as potatoes, jicama, and yams) using aeroponics is about one-quarter less than the cost of a conventionally grown tuber.
Due to the circular nature of the watering system and the higher nutrient absorption rate, aeroponics uses considerably less water than similar farming systems. Aeroponic equipment is also easier to move and requires much less space (nurseries can even be stacked on top of each other like a modular system). In a study comparing lettuce growth aeroponics, hydroponics, and substrate culture, results showed that aeroponics significantly improved root growth with greater root biomass, root-shoot ratio, length, area, and volume. The study concluded that aeroponics systems may be better for higher-valued crops.
surabky / Getty Images
Because the plants aren’t submerged in water, aeroponics is completely dependent on the misting system. If anything malfunctions (or in the event of power outages), then the plants will quickly dry up and die without water or nutrients. Seasoned growers will think ahead and have some sort of backup power and misting system waiting in storage in case the primary one fails. The system’s pH and nutrient density ratio is sensitive, and will require plenty of hands-on experience to understand how to properly balance them; as there is no soil or media to absorb the excess nutrients, proper knowledge about the perfect amount of nutrients is essential to aeroponics systems.
Lead photo: surabky / Getty Images
American Indian Architect Leads Aeroponics Farm Plan For Iron Range To Meda Finals
Pieratos, who is now 62, and three other Chippewa women are co-owners of Harvest Nation, which is leading a promising effort to build an indoor aeroponics farm that would serve hundreds of customers with fresh produce year-round from the reservation, near Tower and Lake Vermilion
JANUARY 24, 2021
“The recruiting sergeant looked at me like, ‘What is this Indian woman doing?’ I scored so highly on the entrance test that he showed me a lot of jobs.” Denise Pieratos, an MIT-trained architect and founder of Harvest Nation, started by four women who are members of the Bois Forte Band of Chippewa in northeastern Minnesota.
Denise Pieratos, who grew up on the Bois Forte Chippewa reservation in northeastern Minnesota, started her career after Tower-Soudan High School as an iron miner.
Recession cost Pieratos her job in 1982 at the former U.S. Steel mine near Virginia. She enlisted in the Army for the G.I. Bill in order to finance the college education that always had seemed a distant dream.
"The recruiting sergeant looked at me like, 'What is this Indian woman doing?' " Pieratos recalled. "I scored so highly on the entrance test that he showed me a lot of jobs."
Pieratos became a Russian-language specialist in Army intelligence and rose to sergeant. And that wasn't the last time Pieratos surprised those who underestimated her.
She was a double-major honors student at the University of Minnesota in the early 1990s, in fine art and graphics design.
Her mentor during an internship at Walt Disney Co. recommended architecture school. Pieratos won a scholarship to MIT in Boston. She earned a master's degree in 1998.
That led to a 12-year design career at architecture firms in Minneapolis and in New York City.
Pieratos, then a divorced mother of two, moved back to the reservation from New York in 2010 to care for her father, who was dying of heart disease and diabetes.
Pieratos attributed that to bad diet.
Pieratos, who is now 62, and three other Chippewa women are co-owners of Harvest Nation, which is leading a promising effort to build an indoor aeroponics farm that would serve hundreds of customers with fresh produce year-round from the reservation, near Tower and Lake Vermilion.
These entrepreneurs also were seeded in 2019 with a $35,000 feasibility grant by Blandin Foundation.
CEO Tuleah Palmer, president of Grand Rapids-based Blandin, praised Pieratos and noted that less than 5% of such investment lands in rural Minnesota and less than 1% with tribes.
"As I admire the work Ms. Pieratos has advanced, her ingenuity and determination, I wonder how many more people like her are out in Minnesota's small towns and villages without access to capital,'' Palmer said.
"Scarcity is a dangerous narrative; it is long overdue that that changes."
Harvest Nation, a semifinalist in the 2019 Minnesota Cup entrepreneur sweepstakes, has been working with a business-development mentor and is one of the 13 finalists this week in the third-annual Meda Million Dollar Challenge for minority-led firms.
The national competition, the largest such entrepreneurs-of-color competition in America, has resulted in $3 million invested in 12 minority businesses since 2019.
Other finalists have attracted post-competition growth capital.
"We're like 'Shark Tank' without the teeth," quipped Meda CEO Alfredo Martel. "2020 has been a tough year for most and to see these exciting companies persist is inspiring. We are excited to see the results of their hard work."
Dani Pieratos, 32, Denise's daughter and the sales and marketing director for Harvest Nation, said the four founders are encouraged by hundreds of reservation, commercial-and-residential Iron Rangers who have expressed interest in becoming fresh-produce customers.
"Our traditional, native-food economy was wrecked and we started eating all those mass-produced processed foods," said Dani Pieratos, who also works full time in food distribution for the Arrowhead Economic Opportunity Agency.
"Investing in healthy bodies and minds is the best 'asset-management' strategy for any community."
Pieratos said Harvest Nation is talking to the Minnesota Department of Natural Resources about siting a demonstration project of around $1 million, of a full-sized production farm inside the old Lake Vermilion-Soudan iron mine that would cost up to $4 million. The mine is managed as a state park by the DNR. The temperature is a near-constant 55 degrees.
Harvest members would pay about $50 per week for a big box of fresh vegetables weekly.
Aeroponics may be best demonstrated in Minnesota by "Living Greens" of Faribault. The company has raised millions of dollars to build a 7,000-square foot building in the middle of farm country. It combines technology, agriculture and science to produce tons of year-round fresh salads, microgreens and herbs on 60,000 square feet of space, mostly elevated.
Aeroponics, a growing trend, uses misting and "dosing" systems to grow year-round crops that need 98% less land and 95% less water than traditional farming with no herbicides or pesticides.
The Harvest Nation founders want to generate green economic growth and better health on the range, to supplant some of what must be trucked in most of the year.
They also are seeking investors for their long-odds aeroponics farm.
Minneapolis-based Meda, a nonprofit adviser, and financier, was founded in 1971 by business leaders to foster minority-business expansion. It has grown in recent years to serve businesses with total revenue of $1 billion and 6,000 employees.
More information is at meda.net and harvestn.ationinc.com
Food Trends Suppliers Should Know to Stay Ahead of the Curve in 2021
With growing concerns about climate change, sustainability and healthy living, 2021 will bring new trends to the food industry. Plant based foods are expected to increase in popularity as more people try to consciously live a more sustainable life.
From insects and pumpkin-seed oil to Brad Pitt-branded wine and transparent packaging, these are the food trends expected to take the U.S. by storm in 2021.
What Will People Be Eating in 2021?
It’s predicted that Americans will be consuming a lot more of the following foods and drinks in 2021:
Insects — According to Forbes, 2.5 billion people around the world eat cooked or raw insects regularly. Many in the U.S. still consider the concept of insect consumption a little grotesque, but attitudes are expected to shift in the coming months with several startups, including Exo cricket protein bars in New York, securing significant funding from investors.
Boxed wine — It’s hard to believe that boxes of wine were considered classy before they were tacky. But in 2021, consumer appreciation for boxed wine is predicted to return. It’s easier to store, cheaper to transport, generates half the carbon dioxide emissions, and has a longer shelf life than its glass-bottled counterparts.
Alternative oils — Whole Foods Market predicts that consumers will become more experimental in their use of oil, choosing walnut, pumpkin seed, and sunflower seed oil over traditional options like olive oil.
Celebrity alcohol — There was an arguably better time when everyone knew someone who wore the Britney Spears perfume. But in 2021, it’s all about Brad Pitt’s rosé and Cara Delevingne’s prosecco, as alcohol brands and vineyards look to drive revenue through partnering with big-name celebrities.
Kombucha — Kombucha is a fermented, lightly effervescent, sweetened black or green tea drink that first hit the mainstream in 2018. Since then, its health benefits have been lauded, and the drink has been growing in popularity. It’s gluten-free and can be filled with live probiotic cultures.
Sweet and Umami — The Green Seed Group suggests that the big flavor combination of 2021 will be umami and sweet. Think rice infused with fish sauce caramel and nori and pork floss.
How Will People Be Eating in 2021?
It’s not just what people eat and drink that will change in 2021, but the entire culture surrounding it.
COVID-19 has contributed to a rise in passionate amateur chefs. With so many people spending much of 2020 stuck at home with extra time on their hands, cooking has become something of an outlet. Indeed, 74% of respondents to a Sensodyne/OnePoll survey said they used cooking as a coping mechanism to manage the stress of being at home, 44% have learned a new recipe, and 32% have taken online cooking classes.
Reduced access to on-the-go, takeout food has seen breakfast truly become the most important meal of the day, and the demand for interesting and diverse breakfast recipes will increase into 2021. Cooking enthusiasts are also investing more time and effort in making baby food and looking for creative takes on staple meals.
Coupled with this newfound enthusiasm for cooking is, unsurprisingly, a newfound enthusiasm for health and wellbeing. Forbes reports that 54% of American consumers care more about the healthfulness of their food and beverage choices in 2020 than they did in 2010. This will see demand for superfoods, probiotics, and supplements grow in 2021, with many food suppliers already incorporating functional ingredients like vitamin C which promise to support the immune system. In a June 2020 survey conducted by GlobalData, 23% of global consumers confessed to stockpiling vitamins and supplements.
COVID-19 has certainly driven Americans to evaluate the relationship they have with food and drink but, fortunately, extreme diets and food fads are expected to lose popularity in 2021. Instead, people are expected to take a healthier and more sustainable approach to healthy living by embracing balance and moderation.
How Will Food and Drink Be Packaged in 2021?
Before COVID-19, food and drink packaging was headed in a very sustainable direction, with consumers increasingly concerned about excess waste and ocean-bound plastics.
But the pandemic has led to increased concerns about biosafety, particularly surrounding the packaging of food and drink. In recent years, many retailers have committed to eliminating unnecessary packaging, but some of these efforts will likely be undone in 2021 due to health and safety concerns and retailers’ desire to reassure their customers. Starbucks, for example, banned the use of reusable cups at the beginning of the coronavirus outbreak.
Despite these setbacks, developments in sustainable and environmentally friendly packaging will continue in 2021.
Other trends will include an increase in transparent windows within food packaging that allow consumers to assess product quality, and QR codes, which can verify product and ingredient claims.
How Will Attitudes to Sustainable Living Change in 2021?
More than two-thirds of consumers want to ensure their everyday actions have a positive impact on the environment. This includes an interest in sustainably produced items, and a shift towards the consumption of plant-based proteins: in 2020, 28% of Americans ate more proteins from plant sources than they did in 2019. Another sustainability trend will see food suppliers up-cycling underused ingredients in a bid to reduce food waste.
Although the year 2021 won’t include a country-wide shift to veganism, retailers can expect increased demand for plant-based food as consumers commit to a more balanced diet and look to reduce their meat and dairy intake.
Image Credit: Rido / Shutterstock.com
Laura Ross Dec 15, 2020
AppHarvest’s Mega-Indoor Farm Offers Economic Alternative To Coal Mining For Appalachia
AppHarvest is taking advantage in the new wave of high-tech agriculture to help feed a growing population and increase domestic work opportunities in a sustainable manner.
Inside AppHarvest's 60 acre state-of-the art indoor farm in Morehead, KY.
In the first year of business, Jonathan Webb and his growing team at AppHarvest are riding high on what he calls the “third wave” of sustainable development: high-tech agriculture, following the waves of solar energy and electric vehicles. Since launching the concept in 2017, Webb and AppHarvest have raised more than $150 million in funding while building and opening one of the largest indoor farms in the world on more than 60 acres near the Central Appalachian town of Morehead, Kentucky.
For Webb, who grew up in the area and has a background in solar energy and other large-scale sustainable projects, AppHarvest is both a homecoming and a high-profile, purpose-driven venture that addresses the need for additional production to feed a growing population and reduce imported produce.
Webb’s vision for AppHarvest was inspired in part by a National Geographic article on sustainable farming in the Netherlands, where indoor growing is part of a national agriculture network that relies on irrigation canals and other innovations. He traveled across the Atlantic Ocean to see the farmers in action, then decided it was a venture he wanted to pursue — in his home state of Kentucky, where the coal industry is in decline and unemployment levels are on the rise.
“Seeing that the world needs 50% to 70% more food by 2050, plus seeing that we’ve shifted most of our production for fruits and vegetables down to Mexico — produce imports were tripled in the last 10 to 15 years,” he says. “I would go to a grocery store, pick up a tomato, and it could be hard, discolored. That’s because it’s been sitting for two weeks on a semi truck, being bred for transportation. So first it was seeing the problem, then asking, ‘How do we solve the problem?’”
As part of my research on purpose-driven businesses and stakeholder capitalism, I recently talked with Webb about AppHarvest’s whirlwind initial year in business, successful investor fundraise, plans to go public, and B Corp Certification.
Good for Business, Good for Community
Jonathan Webb, founder and CEO of AppHarvest
“Where we’re doing what we’re doing is incredibly important. One of our biggest competitive advantages, frankly, is doing it here,” he says. “Some of the hardest-working men and women are the people in this region that power the coal mines, and all we’re trying to do is tap into that and harness that passion. It’s good for our business, but it's good for communities.”
The location has been central to AppHarvest’s benefit in another way, Webb says, as local enthusiasm for the project enabled swift construction that likely would’ve been a challenge in some other regions.
“It's all about economies of scale. We have to build a really big facility to get our costs on materials down so that we can compete with products that are being imported into the country from Mexico,” he says. “We built one of the largest facilities in about a year, so speed and scale are definitely advantages for the company, and a lot of that’s possible based on where we’re operating here in this region.”
While the Bluegrass State has been a good home for AppHarvest, Webb wants the business to be a resource for nearby communities and a beneficial workplace for residents.
“A fundamental part of the way we’re building and growing this company is that every entry-level employee gets full health care, full benefits, living wage, paid time off. So we’re not just creating jobs, we’re creating a lifestyle for your career path,” he says. “We want to see people with high school degrees in this region grow with the company and be assistant growers and head growers three, four years from now. I know this region, and I know what people can do here. Those are the success stories that I look forward to having happen.”
Creating Positive Stakeholder Impact
Producing needed food and building a stronger workforce aren’t the only goals at AppHarvest; Webb says growing produce sustainably, with minimal impact on the environment, also is paramount.
“We’re land constrained in the world, and water constrained. And we have to grow a lot more food and use fewer resources,” he says. “It’s simple in theory; it’s complex in scale. Just the fact that the place is so big is what makes this challenging. But we’re collecting rainwater on the roof and using it directly on the root of the plants. We’re growing hydroponically, and as a result we can use 90% less water than open field agriculture.
“The way we treat water and handle water and how we use rainwater efficiently is the really biggest driver of resiliency long term for us.”
In building a business to have a positive impact on workers, community, and environment, Webb also created a company that is a natural fit for the B Corporation community made up of businesses that achieve a certification based on how well they incorporate all stakeholders into their policies and practices.
“The impact side of this is incredibly important. We didn’t chase certifications,” he says. “We just did the right things: We’re paying a living wage, we're offering health care. It’s the right way to do business. And as a result, we get a huge ROI on our dollar.”
Thanks to its bottom-line success and future promise, AppHarvest has found favor with investors, including Martha Stewart and venture capitalists; and is part of a growing cohort of businesses with a social purpose that are finding traction in the public markets. The company announced in September that it’s going public through a combination with special purpose acquisition company Novus Capital Corp. (Nasdaq: NOVS).
“Why are we going public now? Because full transparency in agriculture is desperately needed,” Webb says. “We want the people who buy our fruits and vegetables to also have the ability to buy into our company. We want the record. We want the institutional rigor. It’s hard to have this spotlight this early, but it’s making us stronger.”
Christopher Marquis, Contributor
Breakthrough Biological Innovation – The Key To Profitable And Sustainable Vertical Farming
Vertical farming, first conceptualized in the late ’90s, is premised on the idea of “a farm within a skyscraper” where environmental conditions, nutrition, and lighting can be optimized
Algae-Based Biostimulants Improve Growth Velocity, Yield, And Quality
In Hydroponic And Aeroponic Indoor Farming
The rapid growth of urban agglomerations across the planet presents serious food security challenges. The US Census Bureau estimated that 80% of Americans lived in cities in 2015. Vertical farming is generally regarded as the most promising approach to supplying cities with fresh leafy greens, vegetables, and small fruits, but skeptics point out that we still have a long way to go before indoor “plant factories” can reach the scale and efficiencies that would make them a truly sustainable source of nutrition for millions of people.
Vertical farming, first conceptualized in the late ’90s, is premised on the idea of “a farm within a skyscraper” where environmental conditions, nutrition, and lighting can be optimized. Growing crops in layers instead of rows, usually employing hydroponics, is a concept that has seduced investors globally. We all see the advantages of growing our food locally - in shipping containers, in warehouses and maybe even in skyscrapers to reduce the need for trans-continental shipping, to generate employment and limit pesticide and chemical-input intensive outdoor farming.
The major barrier to the upscale of vertical farming is economic sustainability and this is mainly related to the energy costs associated with artificial lighting. Can local, vertically grown produce be sold affordably? Despite remarkable technological advances in lighting technology and automation and the availability of renewable energy, there is still an urgent need to develop innovative solutions to get vertical farming over the “tipping point” from a promising food security approach and into a real, long- term and indispensable part of urban food systems.
Doing More with Less
How can vertical farms use less energy and produce more and better? In Chicago, Back of the Yards Algae Sciences, a sustainable industrial biotechnology company, has been working on a simple but elegant solution; grow in less time. After almost 2 years of intensive research, they just published a paper demonstrating that an algae-derived biostimulant (a formulated biological material for improving plant growth) shortened the time between planting and harvesting hydroponically grown red leaf and green leaf lettuce by six days. Since traditionally farmed, outdoor-gown lettuce is currently three-to-five times less expensive to grow than vertically farmed lettuce, a shortened growing period may have significant implications for the economic sustainability of vertical farming as it reduces energy inputs and labor costs.
This breakthrough research was based on the concept of trying to translate the amazing interaction between plants and their soil environments into hydroponic and aeroponic systems. The team was already developing a proprietary Spirulina (blue-green algae) extract for the food and alternative protein markets and began to explore whether phycocyanin, a protein-pigment complex that acts as a key regulator of photosynthesis in blue-green algae, could play a similar role in plants growth.
A series of experiments produced evidence that a phycocyanin-rich Spirulina extract worked as a biostimulant in hydroponics, improving growth, yield, and quality of lettuce while cutting maturation time by 6 days-or 21%-compared to control groups. The faster-growing treatment groups also produced 12.5% more lettuce and were 22% better at photosynthesis than control groups. The treated lettuce was more robust; a mean increase of 2.6cm in leaf length and 2.2cm in basal stem diameter compared to the untreated lettuce was observed and. In the shelf-life test, wilting was seen 2-3 days after it was observed in control groups.
Treatment groups were brighter green (specifically 17% brighter and 75% greener) and better tasting. They had firmer texture, a stronger aroma, and more intense flavor than the untreated group, according to an independent certification company. Using analytical chemistry techniques, the team also examined nutrient content by comparing flavonoid-antioxidant levels in control and experimental groups. Their findings suggested experimental groups were more nutrient-rich, where one flavonoid, Quercetin, had a mean increase of 30% in the treated lettuce.
What it Means
Back of the Yards Algae Sciences was working to cut growing time in hydroponically grown lettuce using a biostimulant to give vertical farmers a new avenue for reducing energy inputs. They were successful and also happened to find that Spirulina extract biostimulants improved color, vigor, nutrient content, and preservation. These product quality findings will support vertical farming in improving profitability by ensuring better selling prices. But perhaps the most exciting aspect of developing natural biostimulants specifically for vertical farming is the possibility to extend the indoor farming sector into row crops as food staples (wheat, soy, corn), ensuring not only better and more secure food supplies for urban populations, but also protecting the environment.
This research is available at: https://www.preprints.org/manuscript/202011.0354/v1
For further information – www.algaesciences.com
The International Online Festival On Hydroponics & Aquaponics - November 27 - 28, 2020
Join 1000+ of World’s Brightest Minds in Hydroponics & Aquaponics to Learn, Share Secrets & Network Online
Join 1000+ of World’s Brightest Minds in Hydroponics & Aquaponics to Learn, Share Secrets & Network Online.
For two days, Agritech Fest will stream speeches, social lounge, networking sessions, and live Q&A sessions to help upgrade yourself to the next level. The all-in-one Hydroponic and Aquaponic event will bring you closer to leading growers and brands than ever before.
Click here to sign up.
Have a look at the event trailer below:
For more information:
www.welcome.agritechfest.com
Vertical Farming To Shape Food's Future Top Companies To Share Expertise At Online Congress - September 22-24, 2020
The first Vertical Farming World Congress will now be held online on 22-24 September, with numerous innovations to help develop an emerging community of leading producers, funders, suppliers, and customers. Its theme will be ‘Shaping Food’s Future
The first Vertical Farming World Congress will be held online from 22nd to 24th September, bringing together the sector’s top minds and businesses, who believe the coronavirus pandemic will accelerate the industry’s inevitable growth. With the theme ‘Shaping Food’s Future’, the event is sponsored by LED lighting solutions provider Heilux.
“This is a unique opportunity for interested investors, agriculturalists, food producers, suppliers, academics and governments,” commented Richard Hall, Chairman of event organizer Zenith Global, the food and drink experts. “There may never be a better time, because the industry is rapidly establishing itself and an online event gives a ringside seat more affordably, along with all kinds of extra features.
“In addition to the most authoritative speakers ever assembled on the sector, there will be virtual farm tours, round tables on key issues, and extensive social as well as one-to-one networking. There will be ongoing access afterwards to review presentations and continue making new connections.
“It will be difficult to beat the caliber and geographic spread of our speakers:
Our industry leadership panel has the founders and chief executives of AeroFarms and 80 Acres Farms from the United States plus Intelligent Growth Solutions and Jones Food Company from the United Kingdom.
On sustainability, we have the World Wildlife Fund; on retailing, we have Migros from Switzerland.
Investors are represented by AgFunder, Ashfords, Innovate UK, and Virgo.
Other leading contributors range from the global Association of Vertical Farming to Wageningen University.
Other talks include a view of the city of the future, a nutrition briefing, and debate about the relative merit of aeroponics, aquaponics, and hydroponics.
A technology briefing will look in-depth at operational choices, plant growth, lighting, and robotics.
Innovator case studies include growing underground, modular aeroponics, shipping containers, and success in Taiwan.”
Media partners include AgFunder, Agritecture, AOA Chile, Association of Vertical Farming, Eatable Adventures, Farm Tech Society, FoodBev Media, Hortidaily, iGrow, Japan Plant Factory Association, NextGenChef, Urban Ag News, Vertical Farming Consulting, and Vertical Farming Podcast. Full program and booking details are available at zenithglobal.com/events. There is a specially discounted rate for start-ups.
Media partners include AgFunder, Agritecture, AOA Chile, Association of Vertical Farming, Eatable Adventures, Farm Tech Society, FoodBev Media, Hortidaily, iGrow News, Japan Plant Factory Association, NextGenChef, Urban Ag News, Vertical Farming Consulting, and Vertical Farming Podcast.
Full program and booking details are available at zenithglobal.com/events.
There is a specially discounted rate for start-ups.
For further information, go to www.zenithglobal.com/events or contact events@zenithglobal.com.
VIDEO: It's A 2-Acre Farm, Packed Into A Shipping Container That Doubles As A Farm Building
The Farm From A Box system is designed to feed 150 people per year and includes drip irrigation, all of the tools, and its own renewable energy setup
The Farm From A Box system is designed to feed 150 people per year and includes drip irrigation, all of the tools, and its own renewable energy setup.
This plug-and-play farming system combines water-smart irrigation, renewable energy, and precision farming technology in a single shipping container that is said to be capable of supporting the cultivation of almost two and a half acres, using regenerative agriculture practices.
We've covered a few different approaches to the "farm in a box" concept, but all of them so far have been built around the idea of growing the crops inside a shipping container, using hydroponics or aeroponics, and artificial lighting. The Farm From A Box is quite a bit different in that the farming takes place outside of the box (or shipping container) and after the contents have been unpacked and deployed, the box itself becomes the hub of the farm infrastructure.
According to the company, this is a "turnkey farm kit" that can be used to build a stronger local food system, especially in food deserts and in the developing world, where infrastructure can be spotty and unreliable at best, and possibly even non-existent. The system is described as being “food sovereignty in a box" that can be a “Swiss Army Knife” for off-grid farming, and while there is a basic template, each unit can be customized to fit the particular situation."
We want to develop this as a rapid response transitional food production system. The box is really infrastructure for places that are struggling with a lack of infrastructure." - Brandi DeCarli, co-founder of Farm from a Box. While the units are designed to be complete systems with all of the core components (minus the land and water rights and labor, of course), the company doesn't just stop there, but also includes a training system to help "new farmers tackle the steep learning curve of permaculture technique." To me, this is one of the critical parts of the venture, because if you've ever tried to grow food on a larger scale than your own backyard, without having any formal training or guidelines to follow, it can be a humbling experience that is full of failures learning opportunities."
Based on extensive field research, we found that rural communities often lack the resources and infrastructure needed to access nutritious food. We developed a toolkit that contains all of the core components needed to grow your own food, on a two-acre plot of land, without the need for an existing grid. Imagine the good it can do by growing local, organic food for a school, or helping jumpstart food production after a disaster. ‘Farm from a Box’ enables and empowers communities to provide for themselves." - DeCarli
Currently, Farm In A Box has a prototype unit operating in Sonoma, California, and a second version is in the works for deployment in the Rift Valley of Ethiopia. Basic units will cost about $50,000, which includes a 3 kW solar PV array, a battery storage system, a drip irrigation system and water pump (which can be fitted to a well or to a municipal water supply), basic farm tools, a sensor package, a seedling house, and a WiFi connectivity package, all packaged into a single shipping container. Other options are available as well, including a water filtration system, an advanced sensor suite, remote monitoring capabilities, and more.
Urban Vertical Farming: The Key To A Sustainable Future
By 2050, the forecast is that we will have an extra 2 billion people on the planet. Many of these people will live in urban areas. And we have already used a third of arable farmland in the past 40 years
Living in a dense city population can make you wonder, "where does our food come from?" When you live in urban areas like Houston, New York City, or Seattle, it's rare that you notice farms on your drive to work.
The idea that our food is grown hundreds to thousands of miles away can be worrisome. What if something were to happen to those farms? Our resources would cut off and we would have limited access to foods. This is why vertical farming in urban areas is critical to ensure cities can be sustainable food leaders.
What is vertical farming?
Vertical farming is the practice of growing crops/foods in vertically stacked layers. This is usually done indoors and in a controlled environment. This method optimizes plant growth and allows the use of soilless techniques such as hydroponics.
How does vertical farming work?
Vertical farming needs several things to work. We'll cover each one below:
Physical Layout - The purpose of farming indoors is to maximize volume. We do this by maximizing the output efficiency per square meter. This is why you will see physical layouts in the form of skyscrapers or vertical tower-like structures.
Lighting - To optimize crop growth, a need for artificial and natural lights are essential.
Growing Medium - There are several different growing mediums for vertical farming. These methods include hydroponics, aeroponics, and aquaponics. Coco Coir, Rockwool, ,Biostrate, Vericulite, Perlite, SunShine #4 and Black Gold are great mediums used in indoor farming.
Sustainability Features - Sustainable features often used with vertical farming feature rainwater tanks, wind turbines, and spaces with low energy costs.
Why is urban vertical farming important?
By 2050, the forecast is that we will have an extra 2 billion people on the planet. Many of these people will live in urban areas. And we have already used a third of arable farmland in the past 40 years.
We need to come up with other sustainable ways to grow food to ensure we can feed everyone. Vertical farming allows us to grow healthy, accessible foods within a few acres of land, close to home.
This is critical for urban areas because they will become more populated over time. Instead of relying on faraway food sources, we need to take matters into our own hands. By establishing urban vertical farming settings, we'll be able to control and grow our own food sources.
Vertical farming also uses 95% less water than traditional farming methods. The use of water needed to grow crops traditionally is wasteful. To be able to handle an influx in population, vertical farming is a sustainable solution.
How does vertical farming benefit us?
There are many reasons why vertical farming is the future of farming. By building vertical farms, there will be an increase in job opportunities. There will be easier access to healthier and attainable foods. With food grown close to home, we will always be aware of where our food comes from.
Because of the controlled environment, there is a higher chance of growth success. We will be able to grow crops year-round and have larger yields. Crops will not be exposed to harsh weather conditions since they'll be grown indoors. Urban vertical farming methods should start being adopted right now.
The Takeaway
To prepare for the upcoming increase in food demand, urban areas need to adopt sustainable policies. People should start growing their food indoors as well as increasing the demand for high-tech farming methods.
Hundreds of Millions Are Being Invested in Vertical Farms Across North America, Europe, The Middle East, Japan And Beyond
This 1st Vertical Farming World Congress will enable you to hear from leading global players and to network with key figures from across the global industry. Bringing together vertical farming operators, investors, suppliers and experts, the event aims is to debate and help advance the sector’s future
Hundreds of millions are being invested in vertical farms across North America, Europe, the Middle East, Japan, and beyond. How big can the industry grow? Will it replace traditional agriculture? Which technology is best – aeroponic, aquaponic, or hydroponic? Which crops are most profitable? Will they boost supermarkets or come directly to our homes?
This 1st Vertical Farming World Congress will enable you to hear from leading global players and to network with key figures from across the global industry. Bringing together vertical farming operators, investors, suppliers, and experts, the event aims is to debate and help advance the sector’s future.
Program highlights include:
Virtual vertical farm tours
1-1 video call networking opportunities
Market opportunity and funding insights
Industry leadership panel
Focus on aeroponics, aquaponics, hydroponics choices
Technology briefing from plant growth to robotics
Key innovator case studies
Plus funding panel, workshops, and one to one meetings.
Zenith Global’s Vertical Farming World Congress is where the world of vertical farming will meet virtually to develop the sector’s future. Make sure you secure your place to stay ahead of your competition.
For full event information and to register, visit: http://www.zenithglobal.com/events/vfwc2020
For information on sponsorship opportunities, visit www.zenithglobal.com/events/sponsorship, or contact Lisa Solovieva on e lsolovieva@zenithglobal.com t +44 (0)1225 327900
US: NEW JERSEY - Will NJ's Million Dollar Investment In Vertical Farming Yield Long Term Growth?
Amidst the growth of urban farming projects in the US, a notable development took place earlier in June with the announcement that Jersey City, New Jersey, is to fund the construction and operation of 10 vertical farms in the city; the first municipal vertical farm program in the country
Written By: Theo Longsdon, Agritecture Intern
Amidst the growth of urban farming projects in the US, a notable development took place earlier in June with the announcement that Jersey City, New Jersey, is to fund the construction and operation of 10 vertical farms in the city; the first municipal vertical farm program in the country.
The city has partnered up with AeroFarms in a three-year contract worth $987,000 - with just over half of this sum funding the construction of the farm units and the rest covering the project’s maintenance. The farms will use aeroponics to grow a range of vegetables and will be situated at senior centers, schools, public housing complexes, and municipal buildings across the city, taking six weeks to install, and the first vegetables being ready just two weeks after.
The principal motive behind the program is the recognition that there is a growing need to enhance access to locally grown nutritious food and improve the diet and overall well being of citizens. This is in part related to the impact of Covid-19, which according to Steve Fulop, the mayor of Jersey City, has had a “disproportionate impact on people with pre-existing heart conditions, high blood pressure, obesity and diabetes which is directly linked to a person’s diet”. The venture will seek to counter these issues and promote a healthy, sustainable lifestyle through producing 58,000 lb of fresh vegetables over three years – roughly equating to 100,000 servings – and through holding dietary workshops and health screenings for participants. The hope is that a surge in awareness about healthy eating practices, coupled with the distribution of fresh, nutritious produce, will drive a change in people’s eating habits that leads to improvements in the wider, long-term health of the community.
The creation of jobs will be a further benefit of the program. AeroFarms are significant job providers; they have created about 120 jobs through their projects in Newark, and their new indoor vertical farming facility in Danville is projected to generate 92 jobs for the area. Whilst there has been no indication about the exact number of jobs that will be created as part of the program, with the introduction of 10 farms across the city it is clear a number of employment opportunities will arise, thus helping to stimulate economic development in the area.
Yet despite these upbeat anticipations, the cost of constructing and maintaining the 10 vertical farms is high, with the contract worth just under $1m. By AeroFarms’ own estimation the 10 farms will produce around 58,000 lb of produce over their 3 years, meaning that it will cost the city about $17 to produce one lb of produce. This is a colossal sum and represents an expensive economic venture in a time when the city faces a $70m budget shortfall as a result of Covid-19.
In such a climate, an alternative option for the city would be to invest money in supporting local farms and promoting the distribution of their produce. A quick look at local farms in the region highlights how this may be a far more cost-effective option: Alstede Farms, a 600-acre farm based in Chester Township retails a wide range of fresh organic vegetables at a significantly lower price – selling a bunch of their spinach for $2.99; a bunch of kale for $2.99; and a pound of beans for $3.99. Another organic farm in the region – Terhune Orchards - offers similarly low prices, retailing a bunch of their kale for $3.25 per bunch, a Romaine lettuce head for the same price, and a head of green cabbage for $2.95. If the city was seeking a more cost-friendly way of promoting healthy consumption patterns, then taking such an approach may have been the more viable option.
But whilst they may represent the more costly option, vertical farms hold a number of advantages over traditional soil farms. Crop yields tend to be higher, as crops can be grown all year round and conditions can be controlled to maximize growth. Having this controlled environment reduces the susceptibility to climate and local weather conditions that is a major drawback of traditional soil farming. The land area needed to cultivate the produce is far lower, as the vegetables can be stacked vertically – a major benefit at a time of increasing pressure on land. Vertical farms also use much less water as they facilitate the production of crops with 70-95% less water compared to traditional cultivation practices. Finally, the generation of local, year-round farmworker jobs is a clear advantage over conventional outdoor farms in the NJ area that depend primarily on seasonal labor. Taking such factors into account may indeed justify the higher cost of produce associated with the program.
One notable stipulation of the program is that those wanting to gain free access to the produce must partake in healthy eating workshops and quarterly health screenings. This entails the obvious risk that the city has overestimated the demand for education and health monitoring amongst Jersey City residents, which could mean that the uptake is lower than anticipated. If the demand does fall short of what the city anticipates, then issues of distribution may arise and the program’s effectiveness may be undermined. Its success will, therefore, depend to a large extent on the willingness of residents to spend time participating in these workshops and regular health screenings.
Jersey City’s newly launched program represents a pioneering attempt to combat deficiencies in access to locally grown, nutritious produce and awareness about healthy dietary patterns. The decision by the municipal body to step in and sponsor the vertical farms is ambitious and unprecedented in the US, but it also throws up some major questions. For example; will the plan of action lead to a long-term alteration in the diets and lifestyles of those involved? Do the associated benefits outweigh the cost of the program? And ultimately, is it a city’s duty to feed people through its own asset, or should it instead focus on policies, incentives, and programs that encourage the growth and support of local farms?
Vertical Farming Congress Makes Virtue of Virtual
The first Vertical Farming World Congress will now be held online on 22-24 September, with numerous innovations to help develop an emerging community of leading producers, funders, suppliers, and customers. Its theme will be ‘Shaping Food’s Future.’
By urbanagnews
July 30, 2020
The first Vertical Farming World Congress will now be held online on 22-24 September, with numerous innovations to help develop an emerging community of leading producers, funders, suppliers and customers. Its theme will be ‘Shaping Food’s Future.’
“We already had top speakers confirmed from around the world including North America, the Middle East and Asia as well as Europe,” commented Richard Hall, Chairman of the food and drink experts Zenith Global and the event’s organiser.
“Now, instead of one vertical farm tour, we plan to offer a selection. Beyond chance encounters, it will be possible to contact other delegates and set up meetings beforehand. Questions can also be tabled in advance and sessions will be recorded for later review. Regional welcome receptions will enable introductions to other delegates from the same geographic area.
“When you add the advantages of extra people being able to attend because of no travel, time being used more flexibly and costs being substantially lower, we believe we can deliver even greater value,” Richard Hall added. “I hope attendees will be surprised how virtual can be made to feel real.”
Full programme and booking details are available at www.zenithglobal.com/events. Topics include: market opportunity; an industry leadership panel; strategic alternatives between aeroponic, aquaponic and hydroponic systems; technology briefings ranging from lighting and robotics to overall system design; a nutrition briefing; a funding panel; and key innovator case studies.
Amongst the speakers are:
• Leading producers such as 80 Acres Farms, Aero Farms, Growing Underground, Intelligent Growth Solutions, Jones Food Company, LettUs Grow, Root AI, Square Roots, The Circle, Uns Farms, Vertical Future and YesHealth
• Association heads and academics from Germany, Japan and the Netherlands
• Investment experts from Ashfords, Innovate UK and S2G Ventures. For further information, go to www.zenithglobal.com/events or contact events@zenithglobal.com
How Vertical Farms Could Be Ready To Take-Off
A new interdisciplinary study combining biology and engineering sets down steps towards accelerating the growth of vertical farming, including the use of aeroponics which uses nutrient-enriched aerosols in place of soil, reports Science Daily
24 Jul 2020
Study identifies future research areas needed to accelerate growth of vertical farming using aeroponics.
A new interdisciplinary study combining biology and engineering sets down steps towards accelerating the growth of vertical farming, including the use of aeroponics which uses nutrient-enriched aerosols in place of soil, reports Science Daily.
Accelerate sustainable growth of vertical farming
The study was carried out by the John Innes Centre, the University of Bristol, and the aeroponic technology provider LettUs Grow. It identifies future research areas needed to accelerate the sustainable growth of vertical farming using aeroponic systems.
Dr. Antony Dodd, a group leader at the John Innes Centre and senior author of the study, says: “By bringing fundamental biological insights into the context of the physics of growing plants in an aerosol, we can help the vertical farming business become more productive more quickly while producing healthier food with less environmental impact.”
Vertical farming is a type of indoor agriculture where crops are cultivated in stacked systems with water, lighting, and nutrient sources carefully controlled.
Seven areas of future research
The study, which appears in the journal New Phytologist and is called Getting to the Roots of Aeroponic Indoor Farming, lays out seven steps – strategic areas of future research needed to underpin increased productivity and sustainability of aeroponic vertical farms.
These seek to understand:
Why aeroponic cultivation can be more productive than hydroponic or soil cultivation.
The relationship between aeroponic cultivation and 24-hour circadian rhythms of plants.
Root development of a range of crops in aeroponic conditions.
The relationship between aerosol droplet size and deposition and plant performance.
How we can establish frameworks for comparing vertical farming technologies for a range of crops.
How aeroponic methods affect microbial interactions with plant roots.
The nature of recycling of root exudates (fluids secreted by the roots of plants) within the nutrient solutions of closed aeroponic systems.
The report argues that a driver of technological innovation in vertical farms is minimizing operation costs whilst maximizing productivity – and that investment in fundamental biological research has a significant role.
Genetically tune crops to grow in vertical farms
John Innes Centre researchers have bred a line of broccoli adapted to grow indoors for a major supermarket and one of the aims of research will be to test how we can genetically tune more crops to grow in the controlled space of vertical farms.
Bethany Eldridge, a researcher at the University of Bristol studying root-environment interactions and first author of the study adds: “Given that 80% of agricultural land worldwide is reported to have moderate or severe erosion, the ability to grow crops in a soilless system with minimal fertilizers and pesticides is advantageous because it provides an opportunity to grow crops in areas facing soil erosion or other environmental issues such as algal blooms in local water bodies that may have been driven by traditional, soil-based, agriculture.”
Aeroponics is associated with very little water, automation, and high tech systems. But what is the current potential of aeroponics technology to grow food or cannabis crops economically?
Hugo Claver
Web editor for Future Farming
Lead Photo: - Photo: ThisIsEngineering
The Future of Food: Inside The World's Largest Urban Farm – Built on a Rooftop
On top of a striking new exhibition hall in the southern 15th arrondissement of Paris, the world’s largest urban rooftop farm has started to bear fruit. Strawberries, to be precise: small, intensely flavoured and resplendently red
In Paris, urban farmers are trying a soil-free approach to agriculture that uses less space and fewer resources. Could it help cities face the threats to our food supplies?
Urban farming on a Parisian rooftop. Photograph: Stéphane de Sakutin/AFP/Getty Images
08 Jul 2020
On top of a striking new exhibition hall in the southern 15th arrondissement of Paris, the world’s largest urban rooftop farm has started to bear fruit. Strawberries, to be precise: small, intensely flavoured and resplendently red.
They sprout abundantly from cream-coloured plastic columns. Pluck one out to peer inside and you see the columns are completely hollow, the roots of dozens of strawberry plants dangling into thin air.
From identical vertical columns nearby burst row upon row of lettuces; near those are aromatic basil, sage, and peppermint. Opposite, in narrow, horizontal trays packed not with soil but coco coir (coconut fibre), grow heirloom and cherry tomatoes, shiny aubergines, and brightly coloured chards.
“It is,” says Pascal Hardy, surveying his domain, “a clean, productive and sustainable model of agriculture that can in time make a real contribution to the resilience – social, economic and also environmental – of the kind of big cities where most of humanity now lives.
And look: it really works.”Hardy, an engineer, and sustainable development consultant, began experimenting with vertical farming and aeroponic growing towers – as those soil-free plastic columns are known – on his Paris apartment block roof five years ago.
This space is somewhat bigger: 14,000 sq metres, the size (almost exactly) of two football pitches. Coronavirus delayed its opening by a couple of months, but Nature Urbaine, as the operation is called, is now up and running, and has planted roughly a third of the available space.
Already, the team of young urban farmers who tend it have picked, in one day, 3,000 lettuces and 150 punnets of strawberries. When the remaining two-thirds of the vast rooftop of Paris Expo’s Pavillon 6 are in production, 20 staff will harvest up to 1,000kg of perhaps 35 different varieties of fruit and vegetables, every day.“
We’re not ever, obviously, going to feed the whole city this way,” cautions Hardy. “In the urban environment you’re working with very significant practical constraints, clearly, on what you can do and where. But if enough unused space – rooftops, walls, small patches of land – can be developed like this, there’s no reason why you shouldn’t eventually target maybe between 5% and 10% of consumption.”
Nature Urbaine is already supplying local residents, who can order fruit and veg boxes online; a clutch of nearby hotels; a private catering firm that operates 30 company canteens in and around Paris; and an airy bar and restaurant, Le Perchoir, which occupies one extremity of the Pavillon 6 rooftop.
Nature Urbaine. Photograph: Magali Delporte/The Guardian
Perhaps most significantly, however, this is a real-life showcase for the work of Hardy’s flourishing urban agriculture consultancy, Agripolis, which is currently fielding inquiries from around the world – including in the UK, the US, and Germany – to design, build and equip a new breed of soil-free inner-city farm.“The method’s advantages are many,” he says. “First, I don’t know about you, but I don’t much like the fact that most of the fruit and vegetables we eat have been treated with something like 17 different pesticides, or that the intensive farming techniques that produced them are such huge generators of greenhouse gases.“I don’t much like the fact, either, that they’ve travelled an average of 2,000 refrigerated kilometres to my plate, that their quality is so poor, because the varieties are selected for their capacity to withstand that journey, or that 80% of the price I pay goes to wholesalers and transport companies, not the producers.”
Produce grown using this soil-free method, on the other hand – which relies solely on a small quantity of water, enriched with organic nutrients, minerals and bacteria, pumped around a closed circuit of pipes, towers and trays – is “produced up here, and sold locally, just down there. It barely travels at all,” Hardy says.“It uses less space. An ordinary intensive farm can grow nine salads per square metre of soil; I can grow 50 in a single tower. You can select crop varieties for their flavour, not their resistance to the transport and storage chain, and you can pick them when they’re really at their best, and not before.”
No pesticides or fungicides are needed, no soil is exhausted, and the water that gently showers the plants’ roots every 12 minutes is recycled, so the method uses 90% less water than a classic intensive farm for the same yield. The whole automated process can be monitored and controlled, on site or remotely, with a tablet computer.
Urban farming is not, of course, a new phenomenon. The mayor of Paris, Anne Hidalgo, aims eventually to have at least 100 hectares of rooftops, walls and facades covered with greenery – including 30 hectares producing fruit and vegetables.
A programme called Les Parisculteurs invites local groups to come up with suitable projects for up to a dozen new sites every year.Inner-city agriculture is booming from Shanghai to Detroit and Tokyo to Bangkok. Strawberries are being grown in disused shipping containers; mushrooms in underground carparks. Not all techniques, however, are environmentally friendly: ultra-intensive, 10-storey indoor farms that have sprung up in the US rely on banks of LED lighting and are major consumers of energy, Hardy says.
Aeroponic farming, he says, is “virtuous”. The equipment weighs little, can be installed on almost any flat surface, and is cheap to buy: roughly €100 to €150 per sq metre. It is cheap to run, too, consuming a tiny fraction of the electricity used by some techniques.
Aeroponic farming is ‘virtuous’, says Pascal Hardy. Photograph: Magali Delporte/The Guardian
Produce grown this way typically sells at prices that, while generally higher than those of classic intensive agriculture, are lower than soil-based organic growers. In Paris, Nature Urbaine should break even, Hardy estimates, some time next year – a few months later than planned because of the pandemic
.There are limits to what farmers can grow this way, of course, and much of the produce is suited to the summer months. “Root vegetables we cannot do, at least not yet,” he says. “Radishes are OK, but carrots, potatoes, that kind of thing – the roots are simply too long. Fruit trees are obviously not an option. And beans tend to take up a lot of space for not much return.”
But Agripolis runs a smaller test farm, on top of a gym and swimming pool complex in the 11th arrondissement, where it experiments with new varieties and trials new techniques. A couple of promising varieties of raspberries are soon to make the transition to commercial production.
Urban agriculture is not the only development changing the face of farming. As with almost every other sector of the economy, digitisation and new technologies are transforming the way we grow food.
Artificial intelligence (AI) and the internet of things are beginning to revolutionise farming, from driverless, fully automated farm machinery that can sow seeds and fertilise and water soil with maximum precision to systems that monitor exactly how healthy individual animals are and how much they are producing (a concept known as the “connected cow”).
Other AI systems analyse satellite and remote ground sensor data, for example, to monitor plant health, soil condition, temperature and humidity and even to spot potential crop diseases.
Drones, too, have multiple potential uses on farms. With the world’s bee population in steep decline due to global heating, pesticides, and other factors, drones are increasingly being used to pollinate crops fields and fruit orchards. To avoid wasting pollen by wafting it randomly at crops, or the damage to individual flowers caused by drones rubbing against them, scientists in Japan have developed a system in which a drone uses what can only be described as a bubble gun to blow balls of specially formulated liquid containing pollen at individual blossoms.
With global food production estimated to need to increase by as much as 70% over the coming decades, many scientists believe genetic editing, which has already been used to create crops that produce higher yields or need less water to grow, will also have to play a bigger role.
The technique could help build plant and animal resistance to disease, and reduce waste. For example, with methane known to be a stronger greenhouse gas than carbon dioxide, research is under way into the stomach bacteria of cows in the hope that tweaking animals’ gut microbes may eventually allow them to produce not just more meat, but also less gas.
Seating at Le Perchoir. Photograph: Magali Delporte/The Guardian
Urban farming of the kind being practised in Paris is one part of a bigger and fast-changing picture. “Here, we’re really talking about about building resilience, on several levels – a word whose meaning I have come to understand personally,” says Hardy, pointing to the wheelchair he has been forced to use since being injured by a falling tree.
“That resilience can be economic: urban farming, hyper-local food production, can plainly provide a measure of relief in an economic crisis. But it is also environmental: boosting the amount of vegetation in our cities will help combat some of the effects of global heating, particularly urban ‘heat islands’.”
Done respectfully, and over time, inner-city agriculture can prompt us to think differently both about cities, by breaking down their traditional geography of different zones for working, living and playing, and about agriculture, by bringing food production closer into our lives. “It’s changing paradigms,” says Hardy.
A Guide To Vertical Farming Techniques
If you don’t already, chances are you’ll be eating more produce from indoor farms in the near future. Learn what that means
If you don’t already, chances are you’ll be eating more produce from indoor farms in the near future. Learn what that means.
Our ancestors first learned to farm nearly 12,000 years ago. By cultivating and domesticating seeds, these once hunter-gatherers broke away from their nomadic lifestyles, settled down to produce controlled and reliable food sources (weather permitting, of course) and, little did they know, change the course of the planet’s future.
Fast forward to the 20th century when a group of architects started planning to alter food production in their own way. They aimed to decreased dependency on traditional land-based farms and harness spatial efficiency in our dense built environment; think less wide-open spaces with tractors and more structures growing stacked layers of crops. This practice—widely referred to as “indoor” or “vertical farming” (taken from Gilbert Ellis Bailey’s 1915 book of the same name)—is alive and booming today, and especially in the New York metro area.
Columbia University professor emeritus and ecologist Dickson Despommier helped to envision the modern vertical farm and indoor agriculture while teaching a graduate-level course in 1999. His students realized that simply using rooftop gardens would been grossly insufficient to feeding the population of Manhattan so inline with urban agriculture predecessors, he began researching different techniques and structures. Despommier is among several academics and vertical farming thought leaders who see vertical farming today as part of the answer to a range of global problems (many partly caused by agriculture) including climate change and water scarcity.
There are a lot of ways to farm indoors and below are three different soilless processes recommended by Despommier. Done properly at various scales, they’re as effective as at growing crops in skyscrapers as they are in 500 square foot studio apartments:
HYDROPONICS
One of the oldest and most common methods of vertical farming, hydroponics includes growing plants without soil and in a water solvent containing mineral nutrients. The simplest hydroponic method (called the floating raft system) suspends the plants in soilless raft like a polystyrene sheet and lets the roots hang to absorb the oxygen-aerated solution. Another common method is the nutrient film technique, which is popular for growing lettuce. Here, a stream of the nutrient-dissolved solution is pumped into an angled channel, typically a plastic pipe, containing the plants. This runs past the plants’ root mat and can then be recirculated for continuous use. New York’s Gotham Greens and Square Roots use hydroponics.
AEROPONICS
It’s no surprise that NASA has been backing research on aeroponic growth for the past two decades as it’s free-floating-roots aesthetic is typically used in futuristic sci-fi movies. With aeroponics, the dangling roots absorb a fine mist comprised of an atomized version of the nutrient solution sprayed directly onto the roots by a pump. Although aeroponics enables plants to grow much more quickly than hydroponics, it requires more solution and therefore is more costly. Newark’s Aerofarms uses aeroponics.
AQUAPONICS
Like hydroponic systems, an aquaponic system contains a soil-free plant bed suspended over a body of water containing nutrients necessary for plant growth. But within the body of water is a population of fish (typically herbivores) that produce waste that function as fertilizer for the plants. In turn, the plants help purify the water to make the water suitable for the fish.
Given that a balance must be achieved to ensure the system of both life forms, aquaponics requires greater attention than hydroponics or aeroponics although filtration and aeration systems can help manage these complications. Furthermore, the types of plants one can grow are much more limited as the necessary plant nutrients must be compatible with those necessary for the fish. Brooklyn’s Edenworks and Oko Farms use aquaponics.
By Matthew Sedacca | Edible Manhattan | May 3, 2017
Lead Illustration by Chamisa Kellogg
Vertical Farming Is The Future of The Agriculture Industry
Vertical farming is a simple practice of producing food crops on vertically inclined surfaces, unlike the traditional farming method of single-level like in fields or greenhouses
26 May 2020
World population is said to grow by another 2 billion by the year 2050, feeding humans adequately will become a huge challenge until then. Due to rising industrialization and urbanization, humans are clearing arable land and forests. According to scientists, our planet lost a third of its arable land in just 40 years. Many believe that Vertical farming is the solution for sustainable living soon.
As countries are getting rich demand for food is increasing which is pressuring the planet for more cultivation and aggressive use of resources. Due to globalization and the growing population, it is not clear how much more of arable land we will lose. Developed countries are now investing in Vertical farming heavily.
What is Vertical Farming?
Vertical farming is a simple practice of producing food crops on vertically inclined surfaces, unlike the traditional farming method of single-level like in fields or greenhouses. In this method, food is produced in vertically stacked layers which are integrated into structures like skyscraper or shipping containers.
Using Controlled Environment Agriculture (CEA) technology, vertical farming uses indoor farming techniques. This indoor technique uses artificial control of temperature, light, gases, and humidity for food. This farming is mainly used to maximize crop output in a limited area.
This farming has four important parts 1) Physical layout 2) Lighting 3) Growing Medium and 4) Sustainability Features.
At first, the crops are cultivated in a stacked-layer in a tower-like structure. Then a combination of natural and artificial lights is used to maintain the perfect light in the room, technologies such as rotating beds are often used to improve light efficiency.
Thirdly, in place of soil aeroponic, aquaponic or hydroponic are used as growing mediums, coconut husks and other non-soil mediums are often used. Finally, various sustainability features to reduce the energy costs of farming is used. Vertical farming use water at a minimal level.
Developed countries like Singapore, Hong Kong who depend on imports for food products are now investing in Vertical Farming. Sky Greens, first commercial vertical farm and worlds first low carbon vertical farm. This farm produces up to 1,000 kg of vegetables a day. Next year it will reach its full capacity then it can produce 5,000 to 10,00 kg a day.

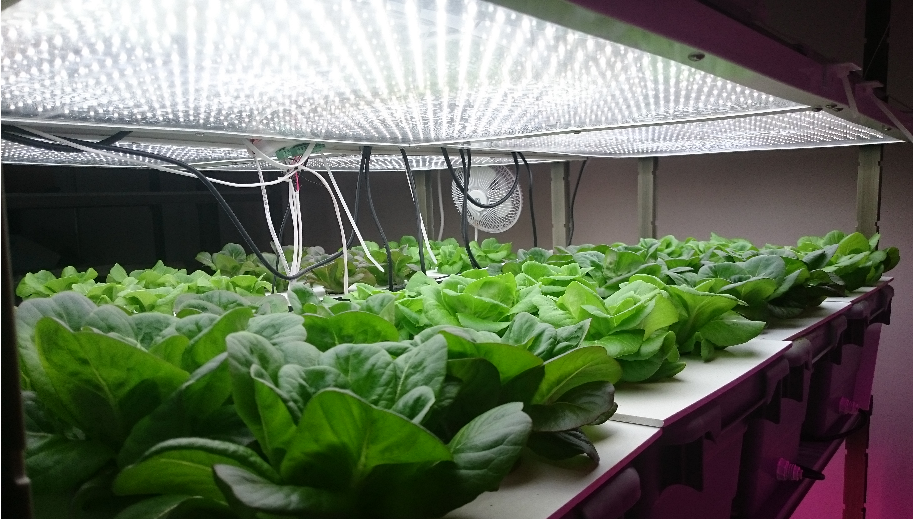

In Hong Kong, a Vertical farming venture called Farm66 uses modern LED lights and aquaponics in a fully air-conditioned vertical farm of size 20,000 sq ft. This farm produces four tons of lettuce, endive, and cabbage very month.
In the next two decades, 80 percent of people live in urban cities, increasing the demand for food. Vertical farming offers a solution to such problems. One acre of indoor vertical farming equals 4-6 acres of outdoor farming. This farming use 75-95 percent less water compared to normal cultivation. As vertical farming is based on the technology of using proper lightning crops can be developed without pesticides.
Related Links:
PODCAST: Honolulu's First Vertical Farm: MetroGrow Hawaii
They produce specialty crops, like herbs, corn shoots, butter lettuce, and an extra-salty ice plant, using hydroponics and aeroponics
We interview Kerry Kakazu, a plant scientist who started MetroGrow Hawaii.
They produce specialty crops, like herbs, corn shoots, butter lettuce, and an extra-salty ice plant, using hydroponics and aeroponics. Learn why chefs love their produce and what some of the challenges are when building a vertical farm in Hawaii.
LISTEN TO PODCAST
March 2020
